High-Performance Composite Filaments
Fiberon™ PA612-ESD
Elevate prototyping with industrial-grade strength, thermal stability, and electrostatic protection
HDT(°C)
0.45MPa157.0 °C
0.45MPa157.0 °C
Young's
Modulus
Dry4293.7 MPa
Modulus
Dry4293.7 MPa
Young's
Modulus
Wet3730.8 MPa
Modulus
Wet3730.8 MPa
Spool info:
1.75mm
500g, 3kg
About PA612-ESD
TDSSDS

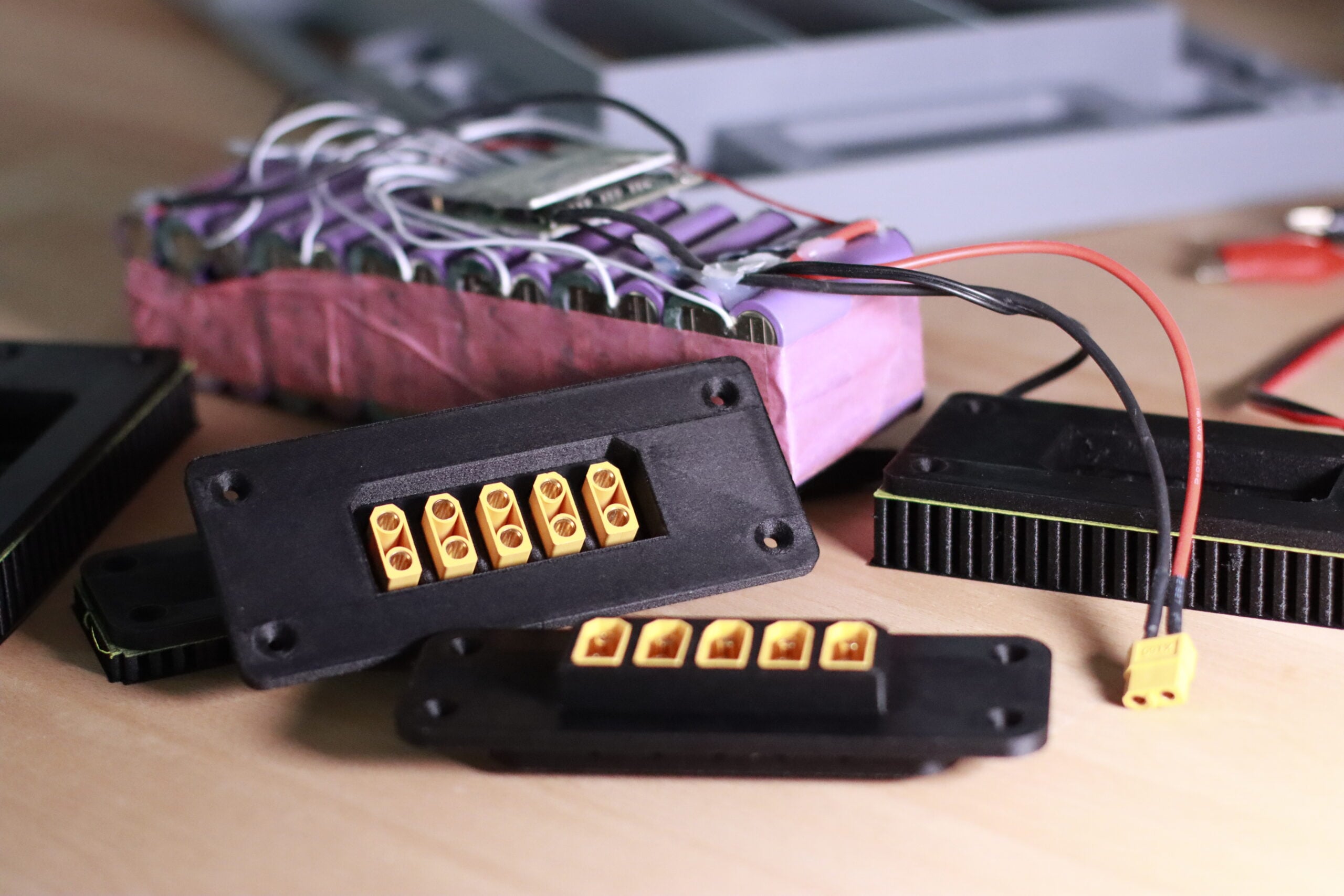

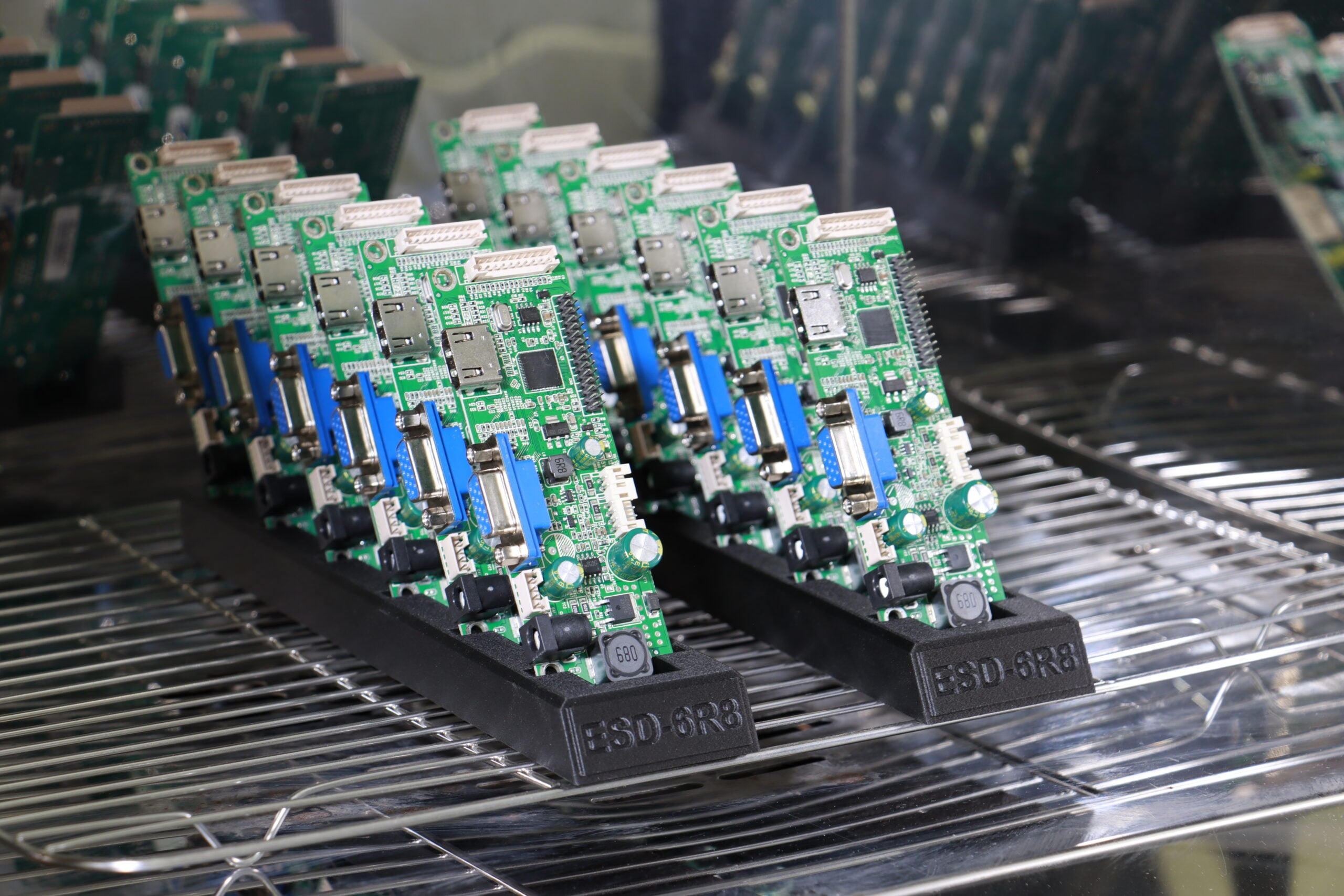

Fiberon™ PA612-ESD is a next-generation nylon composite filament engineered with carbon nanotubes and carbon fibers for enhanced mechanical durability and electrostatic dissipation. Protect your sensitive electronics by 3D printing ESD housings or streamline your production process with ESD safe jigs & fixtures that are not only tough but also heat resistant to 157°C.
Application Category
Electronics
Industrial parts
Jigs & Fixtures
HDT (0.45MPa)
HDT(°C)157.0 °C
Young's modulus
Dry4293.7 MPa
Wet3730.8 MPa
Tensile strength
dry (x-y)
84.3 MPa
dry (z)
21.5 MPa
wet (x-y)
73.6 MPa
wet (z)
19.2 MPa
Charpy Impact strength
notched
notched
dry
5.9 kJ/m²
wet
4.9 kJ/m²
Bending modulus
dry (x-y)
3745.5 MPa
wet (x-y)
3056.1 MPa
(*) all data are from printed specimen
High Heat Resistance
ESD Safe
Printer compatibility
Printing temperature: 280–300 °C
Bed temperature: 40–50 °C
(*) No heated chamber or enclosure needed
Bed temperature: 40–50 °C
(*) No heated chamber or enclosure needed
Nozzle compatibility
Brass nozzle has a lifespan of 9h when printing PA612-ESD. We recommend to use a more durable nozzle.
